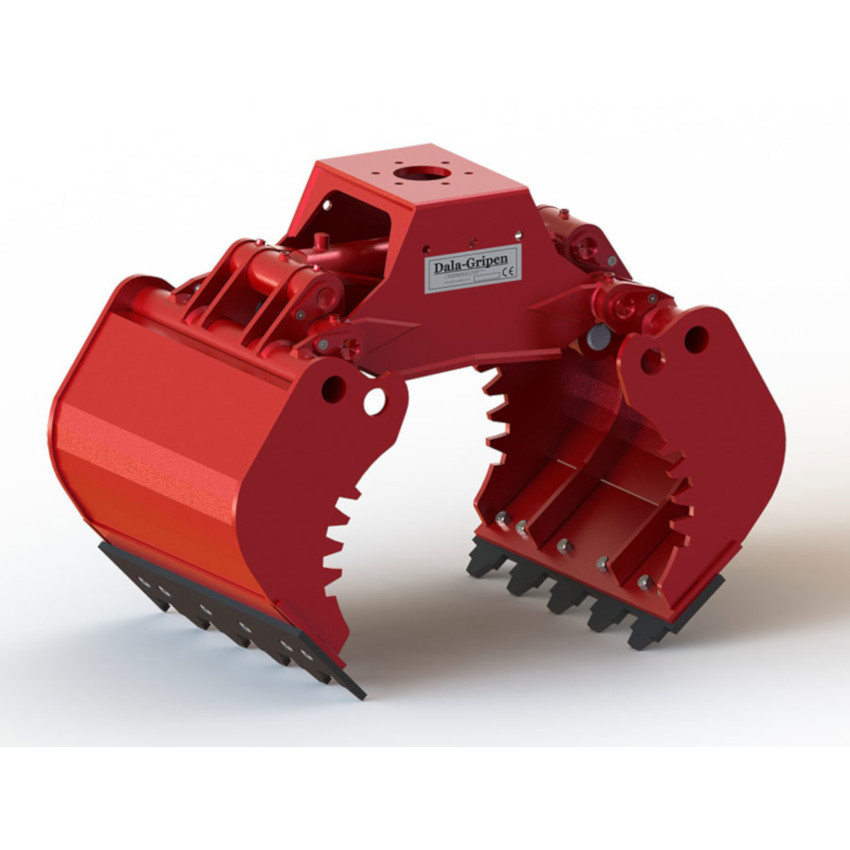

Beskrivelse
| Modell | DGM20 | DGM28 |  | ||
| Rekommenderad maskinvikt (ton) | 3-10 | 8-18 | |||
| A | Height when open | mm | 470 | 625 | |
| B | Max opening | mm | 1225 | 1545 | |
| C | Height closed | mm | 610 | 800 | |
| E | Length closed | mm | 685 | 860 | |
| F | Max Width | mm | 590 | 740 | |
| H | Gripping area width | mm | 360 | 370 | |
| I1 | Gripping area height | mm | 320 | 455 | |
| I2 | Inside height opened 1m | mm | 325 | 500 | |
| I3 | Inside height max opened | mm | 210 | 300 | |
| Capacity when closed | l | 120 | 200 | ||
| Weight | kg | 136 | 308 | ||
| Max load | kg | 3000 | 3500 | ||
| Max working pressure | Bar | 250 | 350 | ||
| Cylinder force | kN | 77,8 | 175 | ||
| Gripping force arms tip | kN | 10,3 | 22,5 | ||
| Opening time 70l/min | s | 0,28 | 0,7 | ||
| Closing time 70l/min | s | 0,48 | 0,9 | ||
| Ordernr | DGM20 | DGM28 | |||
