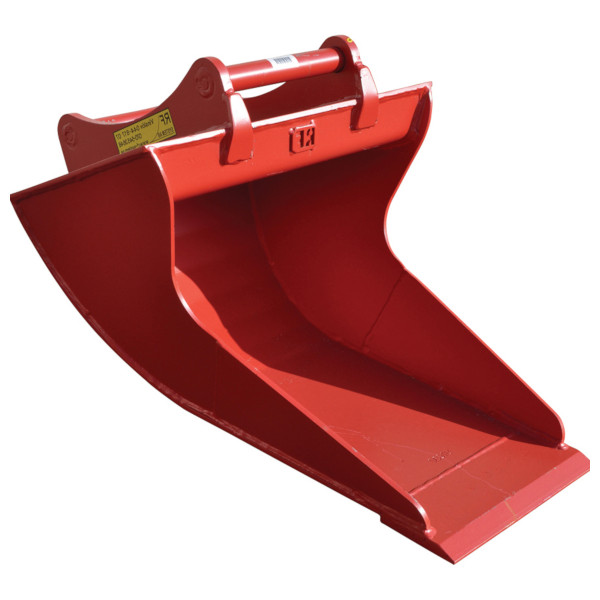

Kabelskuffe med profil

Kategori: RF Skuffer

Beskrivelse

RF-System kabelskuffer er produsert i Sverige.
Bare kvalitetsstål med hardhet HBW 400 og HBW 500 brukes der stålet er slitt.
Skuffene kan bygges etter dine ønsker og er spesialdesignet for bruk med rotorvippe / tiltrotator.
Kabelskuffen er tilgjengelig fra 200 mm bredde i bunnen og 60 liter med S40, opp til 500mm bredde og 420 liter med S70 / B20 / B27 .

Produktfakta

PRODUKT (max maskinvikt)	SAK NUMMER	VEDLEGG	VOLUME (SAE / L)	BREDD NER (mm)	BREDDE OPP (mm)	VEKT (kg)
SK2 4	201-04104-020-02	S40	60	200	420	50
SK2 4	201-04104-020-03	S40	90	300	520	60
SK2 4	201-04104-020-04	S40	100	400	620	70
SK2 6	201-06104-020-02	S40	160	200	500	70
SK2 6	201-06104-020-03	S40	180	300	600	80
SK2 6	201-06104-020-04	S40	200	400	700	90
SK2 10	201-10107-020-02	S45	180	200	500	90
SK2 10	201-10107-020-03	S45	200	300	600	100
SK2 10	201-10107-020-04	S45	220	400	700	110
SK2 10	201-10109-020-02	S50	180	200	500	90
SK2 10	201-10109-020-03	S50	200	300	600	100
SK2 10	201-10109-020-04	S50	220	400	700	110
SK2 12	201-12107-021-03	S45	280	300	600	120
SK2 12	201-12107-021-04	S45	300	400	700	130
SK2 12	201-12107-021-05	S45	320	500	800	140
SK2 12	201-12109-021-03	S50	280	300	600	120
SK2 12	201-12109-021-04	S50	300	400	700	130
SK2 12	201-12109-021-05	S50	320	500	800	140
SK2 14	201-14111-021-03	S60	280	300	600	150
SK2 14	201-14111-021-04	S60	300	400	700	160
SK2 14	201-14111-021-05	S60	320	500	800	170
SK2 22	201-22111-021-03	S60	380	300	700	270
SK2 22	201-22111-021-04	S60	400	400	800	280
SK2 22	201-22111-021-05	S60	420	500	900	290
SK2 22	201-22113-021-03	S70	380	300	700	290
SK2 22	201-22113-021-04	S70	400	400	800	300
SK2 22	201-22113-021-05	S70	420	500	900	310
SK2 22	201-22117-021-03	B20	380	300	700	310
SK2 22	201-22117-021-04	B20	400	400	800	320
SK2 22	201-22117-021-05	B20	420	500	900	330
SK2 22	201-22118-021-03	B27	380	300	700	330
SK2 22	201-22118-021-04	B27	400	400	800	340
SK2 22	201-22118-021-05	B27	420	500	900	350

Tilbehør og reservedeler

PRODUKT	SAK NUMMER	Tykkelse (mm)	PASS
SHIMS 1	9-275-006	1	B20
SHIMS 2	9-275-005	2
SHIMS 3	9-275-008	3
SHIMS 5	9-275-007	5
SHIMS 8	9-275-004	8
SHIMS 10	9-275-003	10
SHIMS 12	9-275-002	12
SHIMS 15	9-275-001	15
SKIEN 2-18	9-275-010	2	B18
SKIEN 5-18	9-275-011	5	B18

Send forespørsel
